Autonomous diesel air heater
with built-in generator
E-CORNER MH-04D-PRO

Areas of application.

Our heater is a perfect match for outdoor enthusiasts.
For camping, fishing and hunting

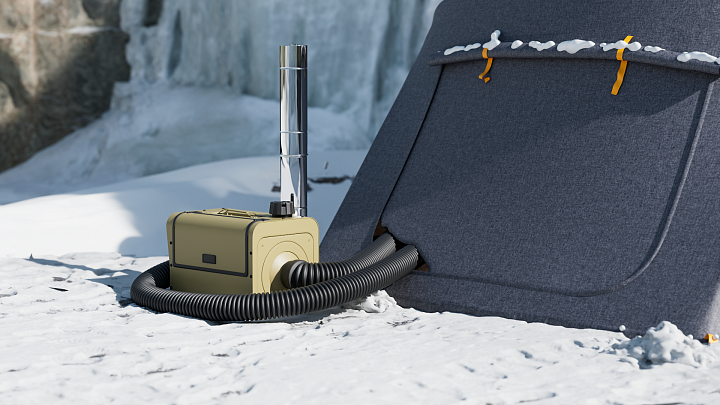

Heating of the tent and shelter

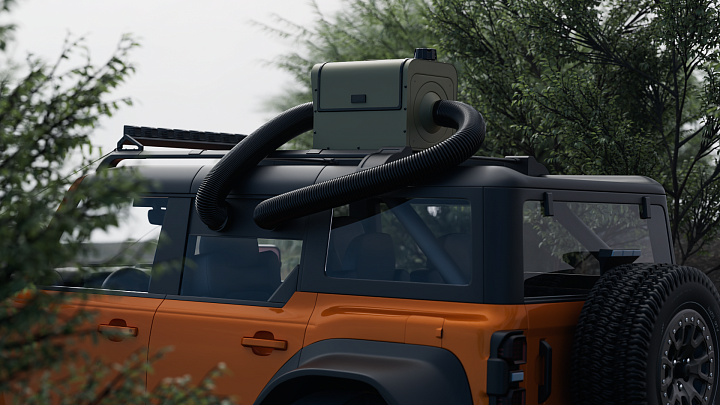

For the car

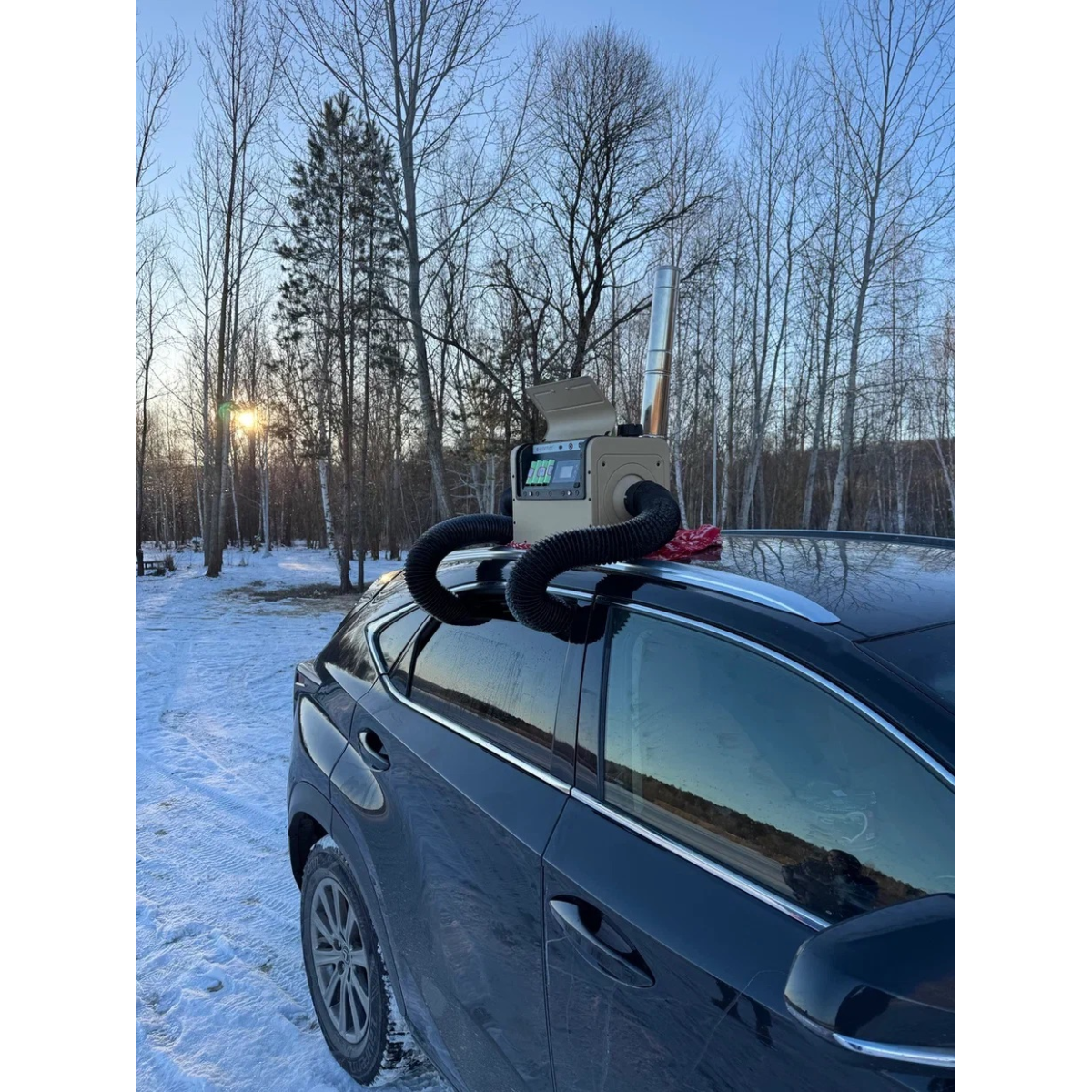

Heating of the vehicle interior

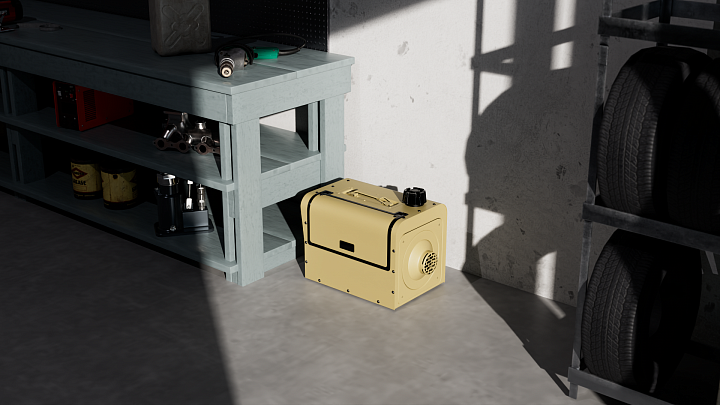

For the garage
Heating of the premises

Advantages of e-corner

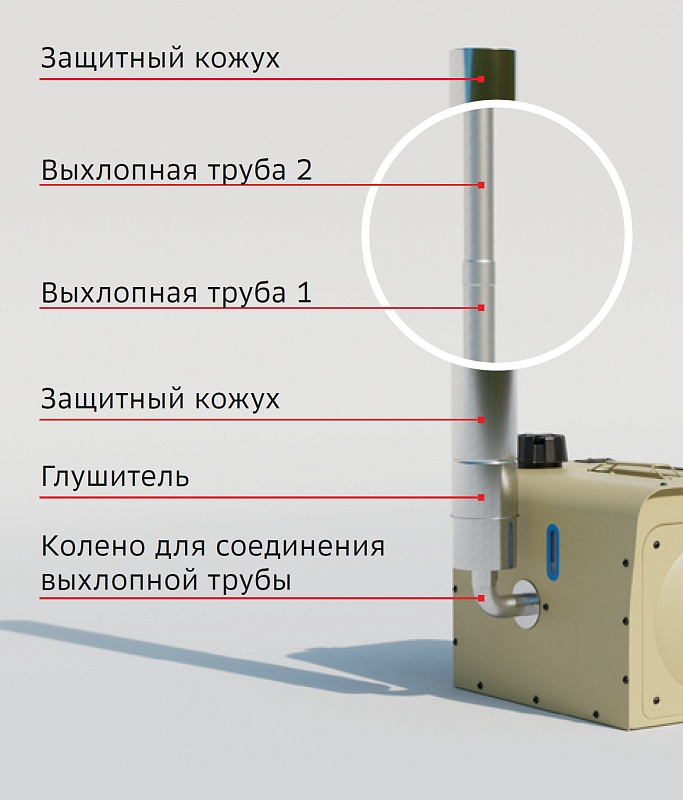

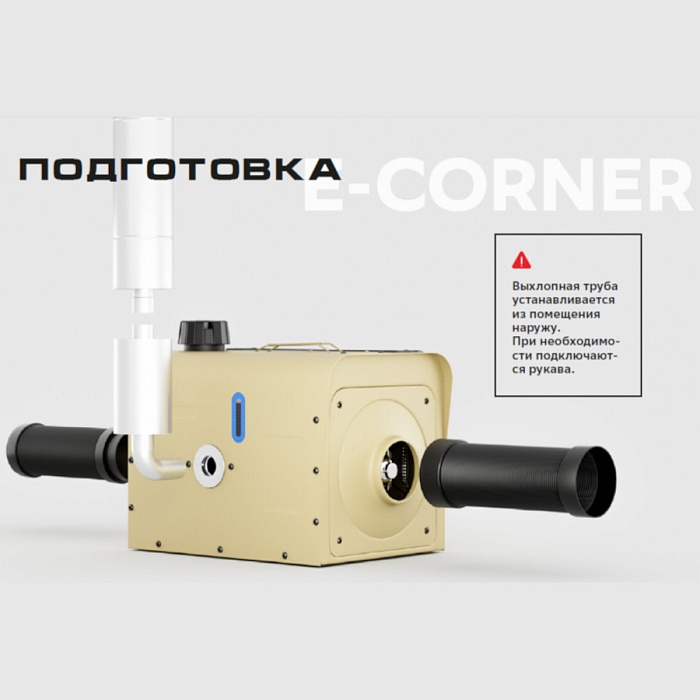

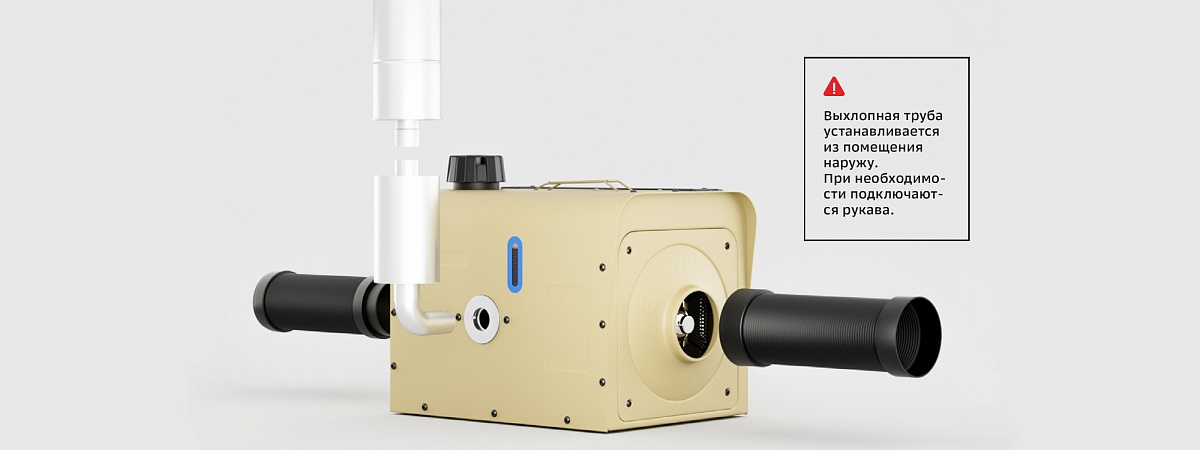

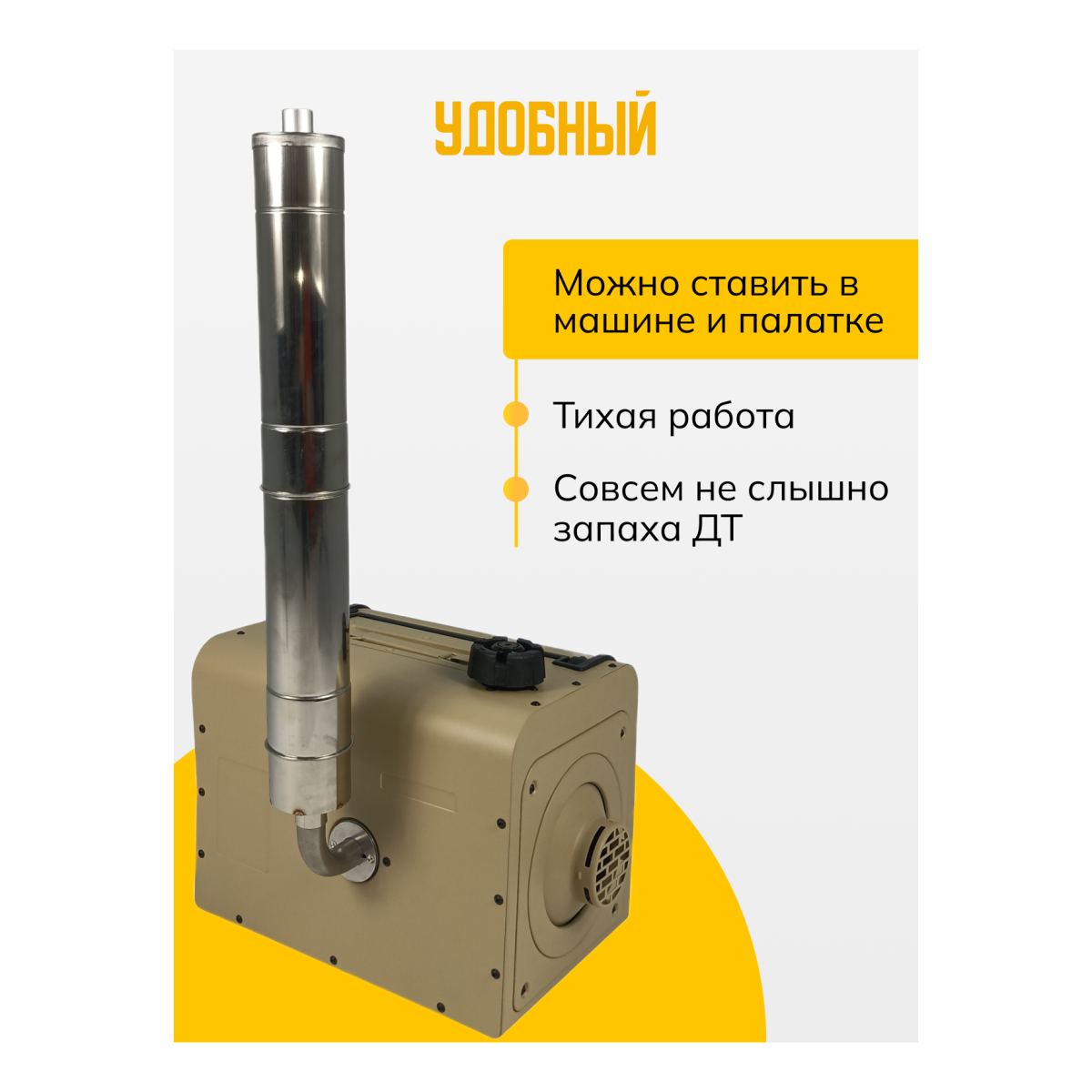

Install the exhaust pipe. To do this, connect the protrusive end of the elbow to the exhaust pipe connector on the heater and turn it 90 degrees clockwise to lock it in place. Connect the muffler and the two exhaust pipes in turn and then put the two protective covers on top.

If the heater is used in a closed environment, it is necessary to divert the exhaust gases outside the room. Moreover, the exhaust gases must be vented outside the heated space so that they do not return through a ventilating device or window.

When the heater is located outside the heated room, an air intake and air outlet pipes must be installed. Insert the air duct connections into the heater inlet and outlet openings, respectively, and turn the air duct clockwise to fix. To prevent heat loss, a thermal insulation cover must be fitted to the air pipe.
Heater start-up
Step 1

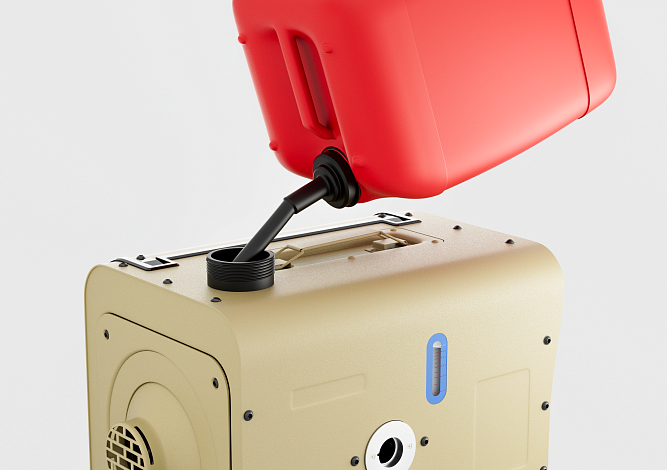

Filling up the fuel
Step 2

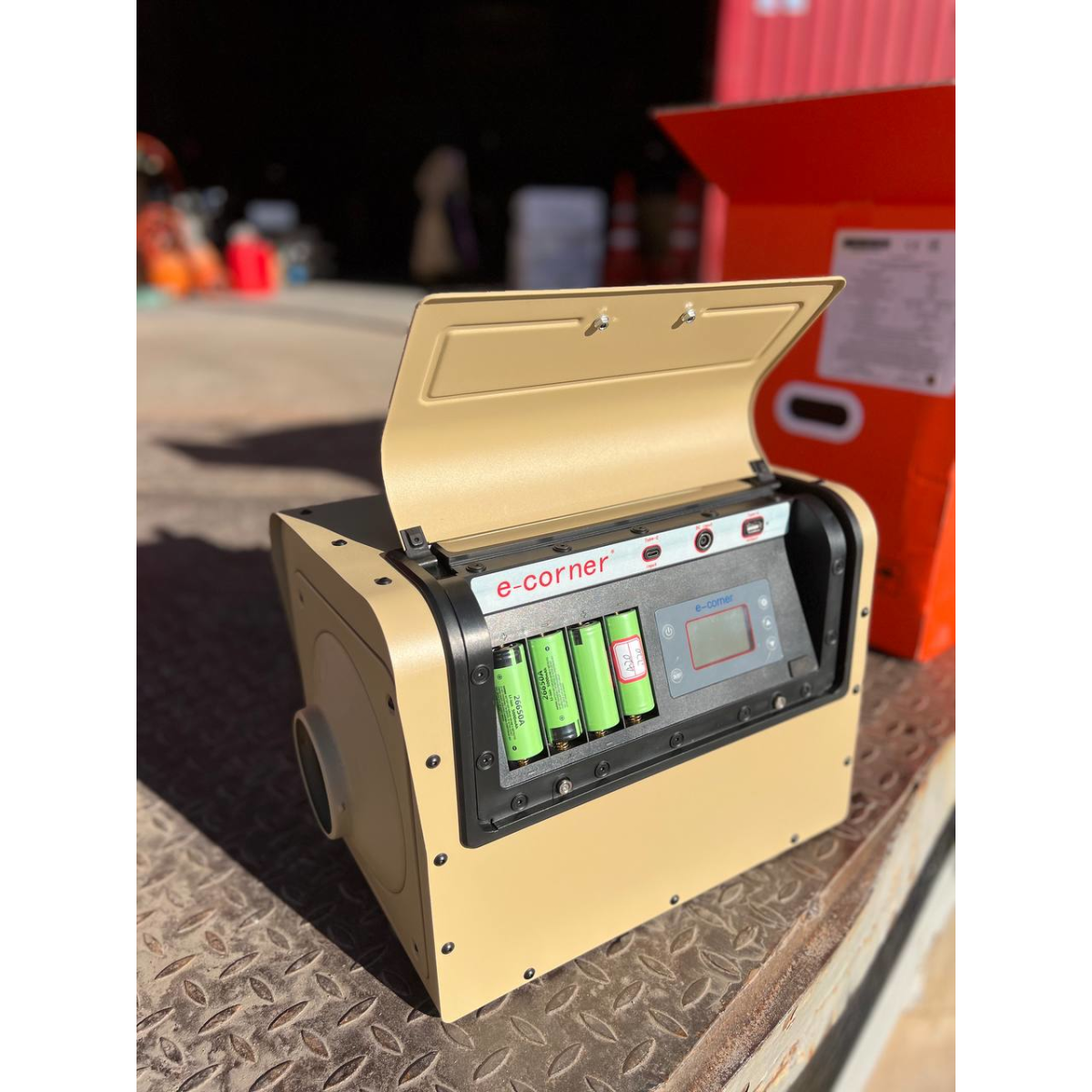

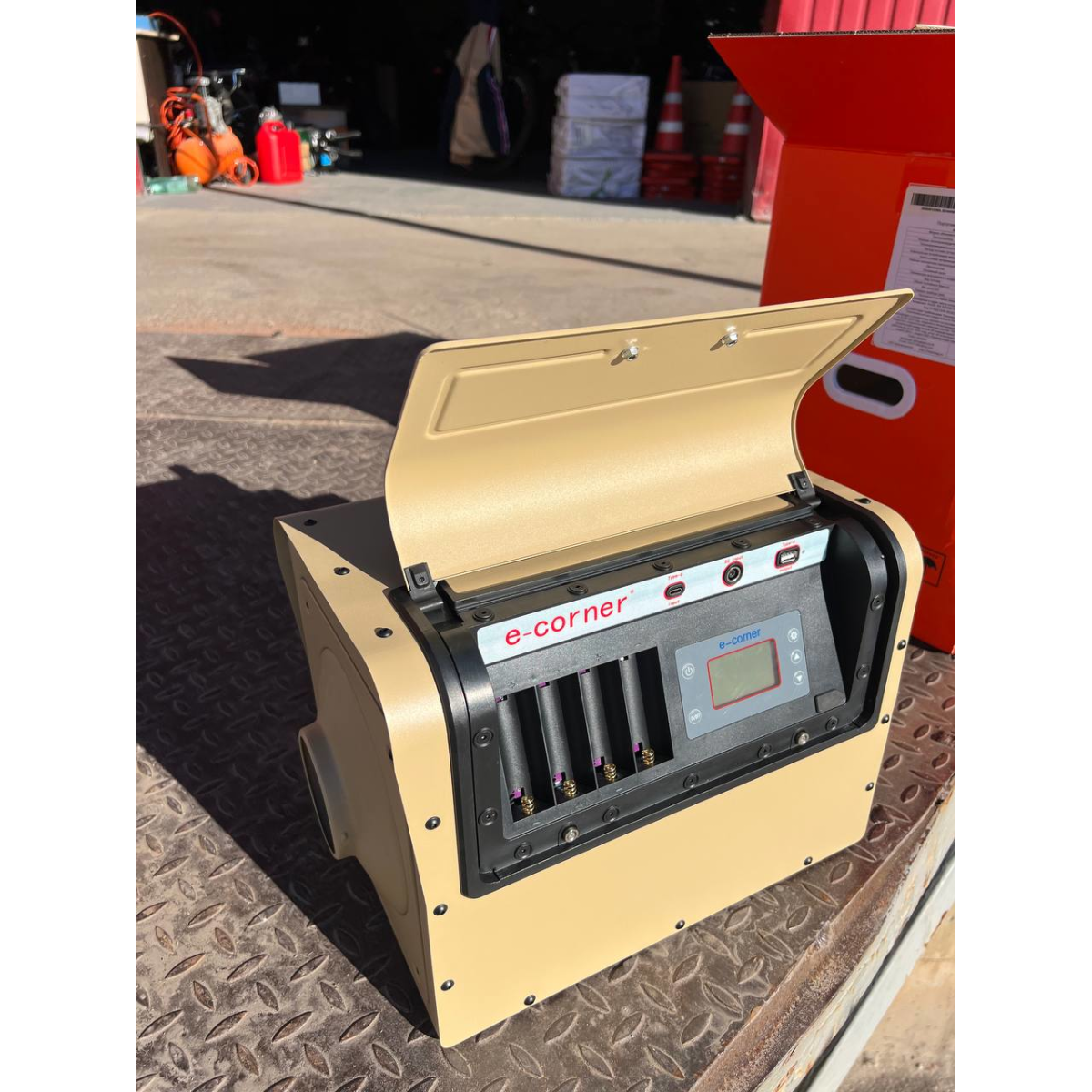

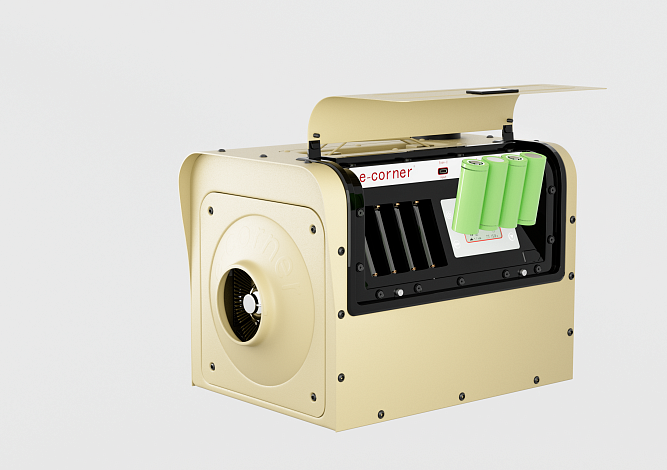

Inserting the batteries
Step 3
Switching on the heater

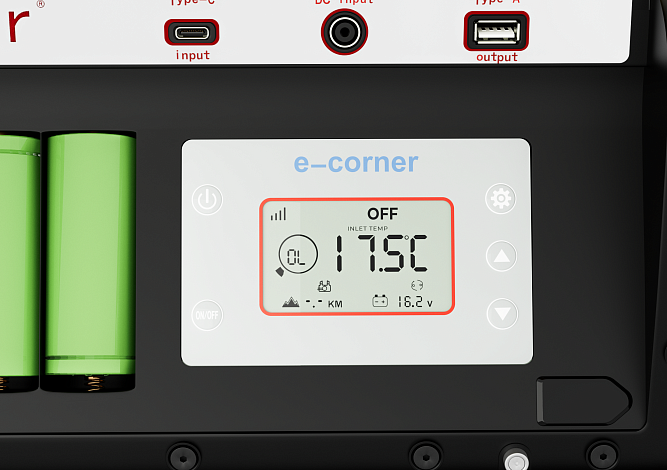

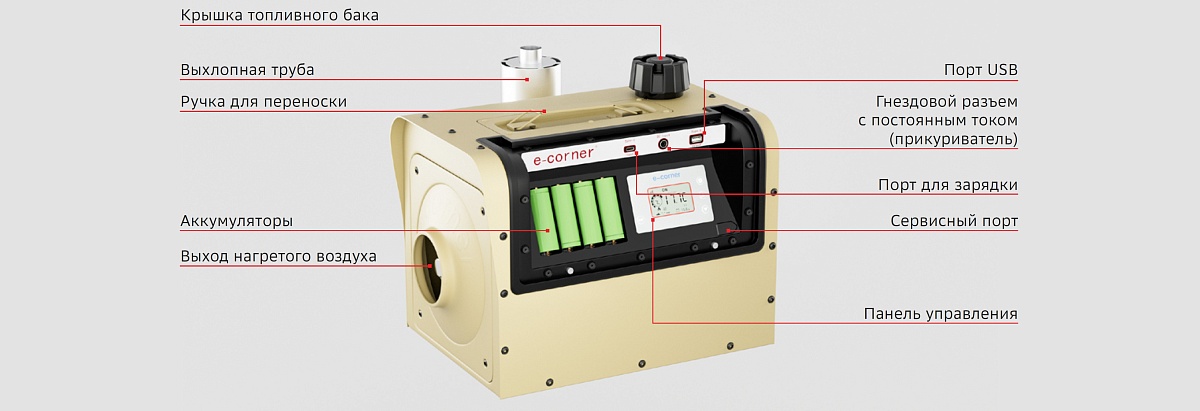

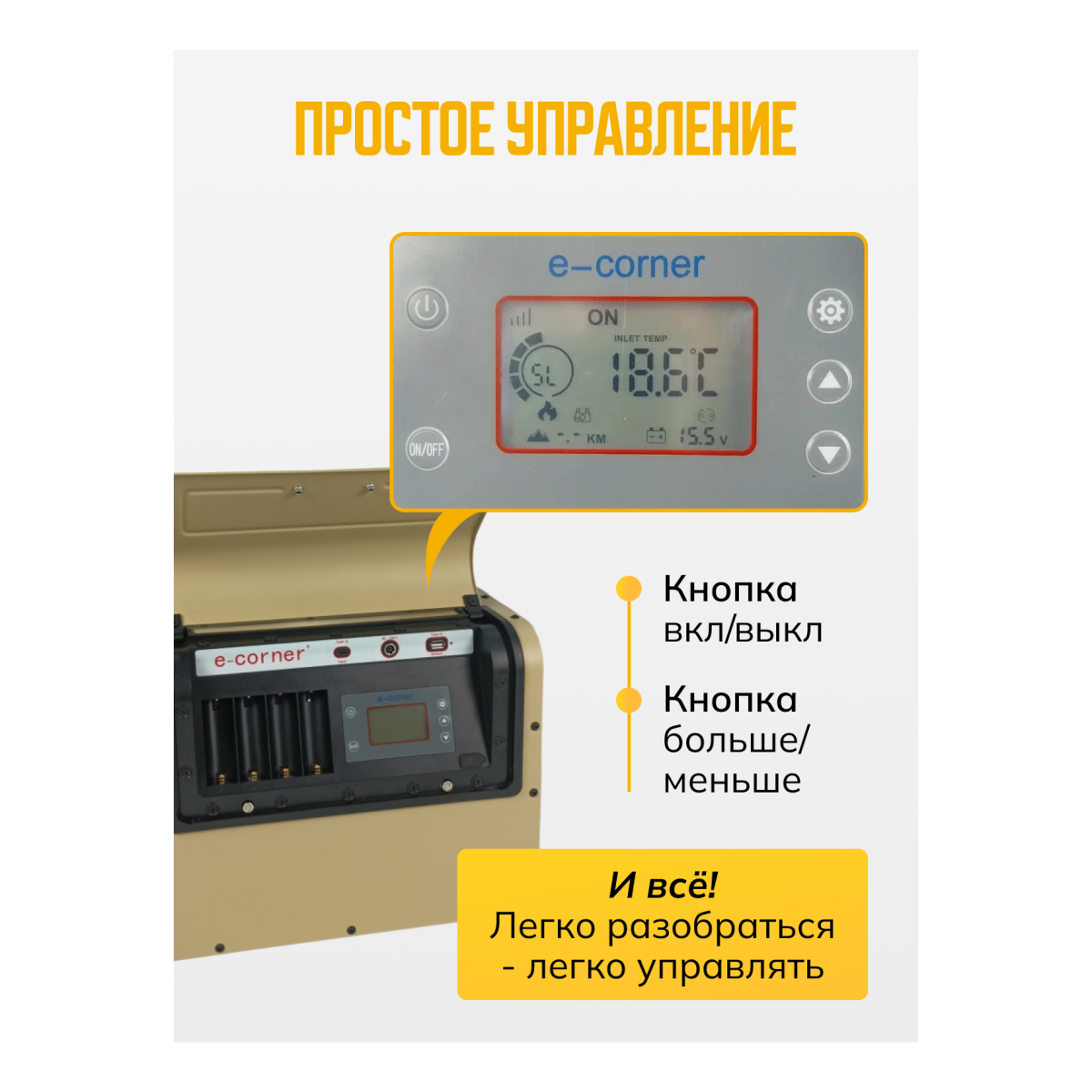

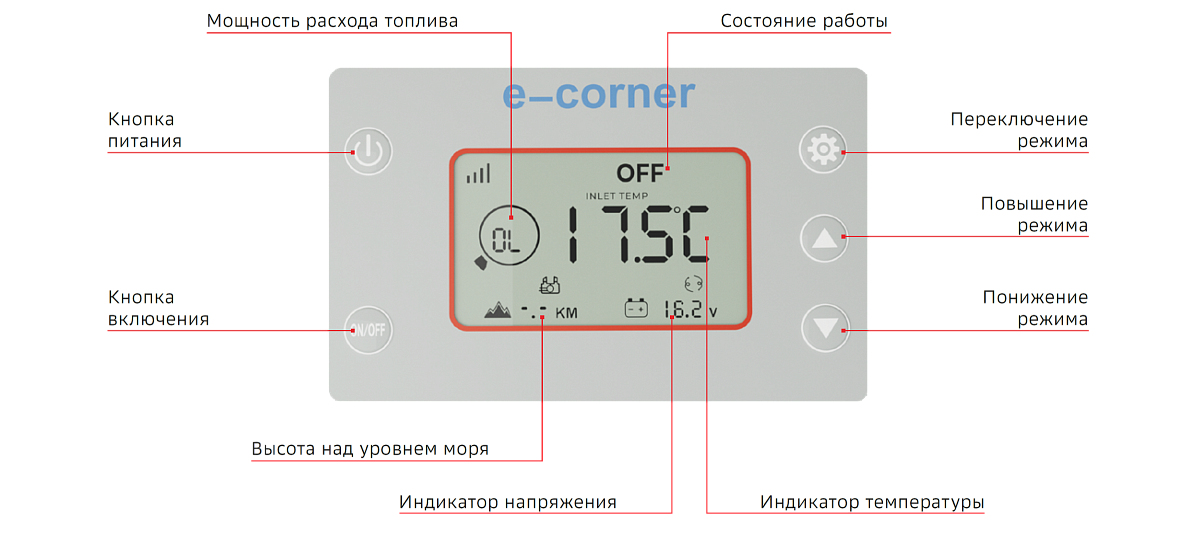

Control panel

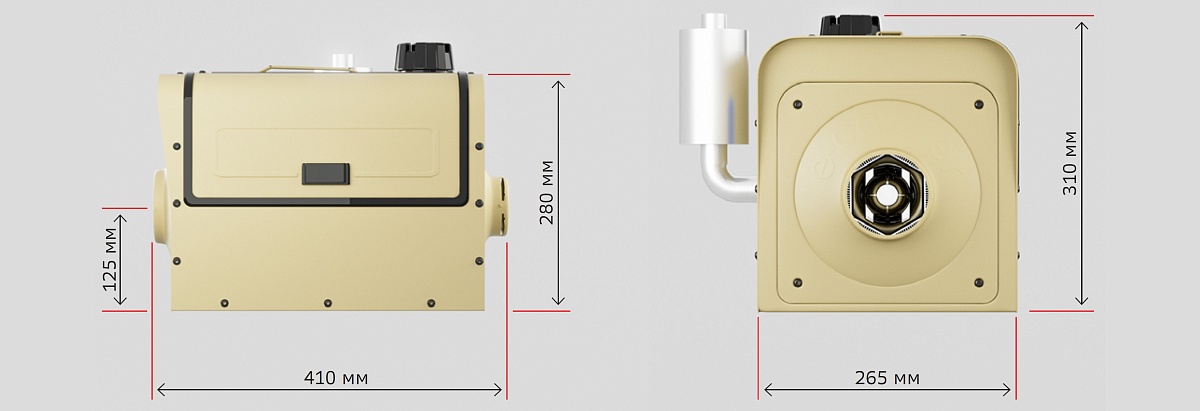

Specifications

The heater power is adjustable in the range between 1 and 4 kW.
The heater operates on diesel fuel.

The device has a convenient remote control indicating power, voltage, and temperature.

The fuel tank volume is 3.7 liters.

Diesel fuel consumption is 0.1 - 0.35 liters per hour.

Diesel fuel consumption in 2 kW power mode is 150ml/h.
It takes only 1.5 liters of diesel fuel for 10 hours of operation.

Can work up to 24 hours with a consumption of 3.7 liters (in 2 kW power mode).

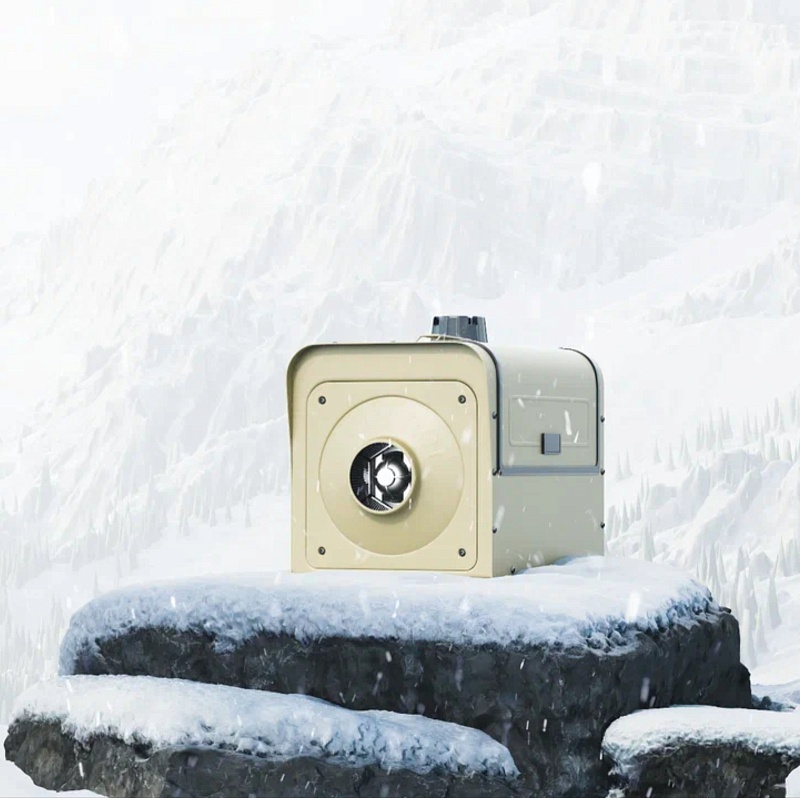

Operating environment temperature: down to minus 40 °С.

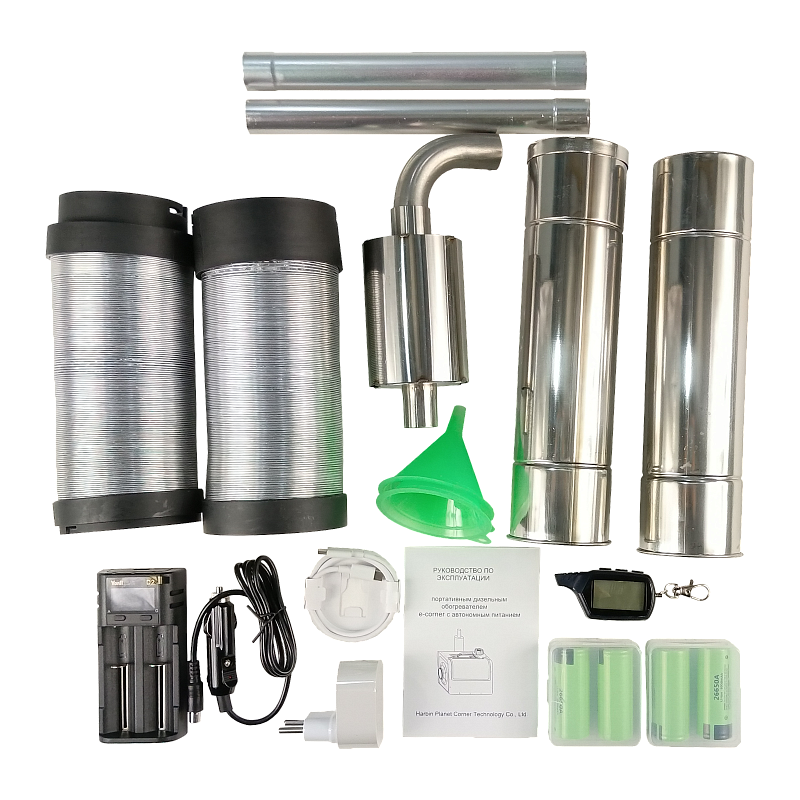

Packing list

1.   MH-04D Pro main device
2.   Exhaust pipe (2pcs)
3.   Muffler
4.   Exhaust pipe protective sleeve (2 pcs)
5.   Air intake pipe
6.   Air outlet pipe
7.   Insulation sleeve for the intake/outlet air duct
8.   Battery 2650А (4 pcs)
9.   Hexagonal wrench 2mm
10. Hexagonal wrench 2.5mm
11. Charger
12. Remote control
13. Window fabric
14. Portable bag
15. User manual

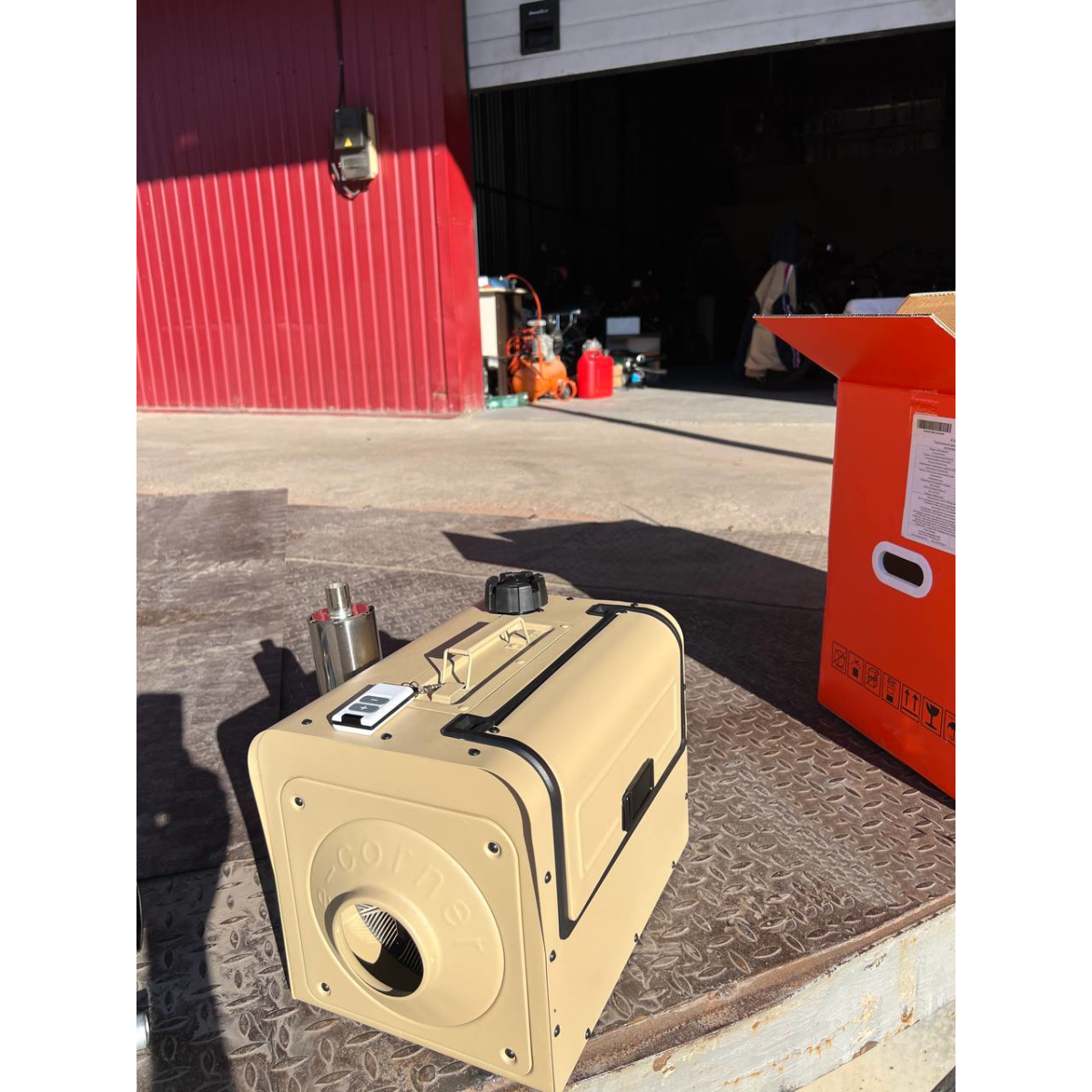

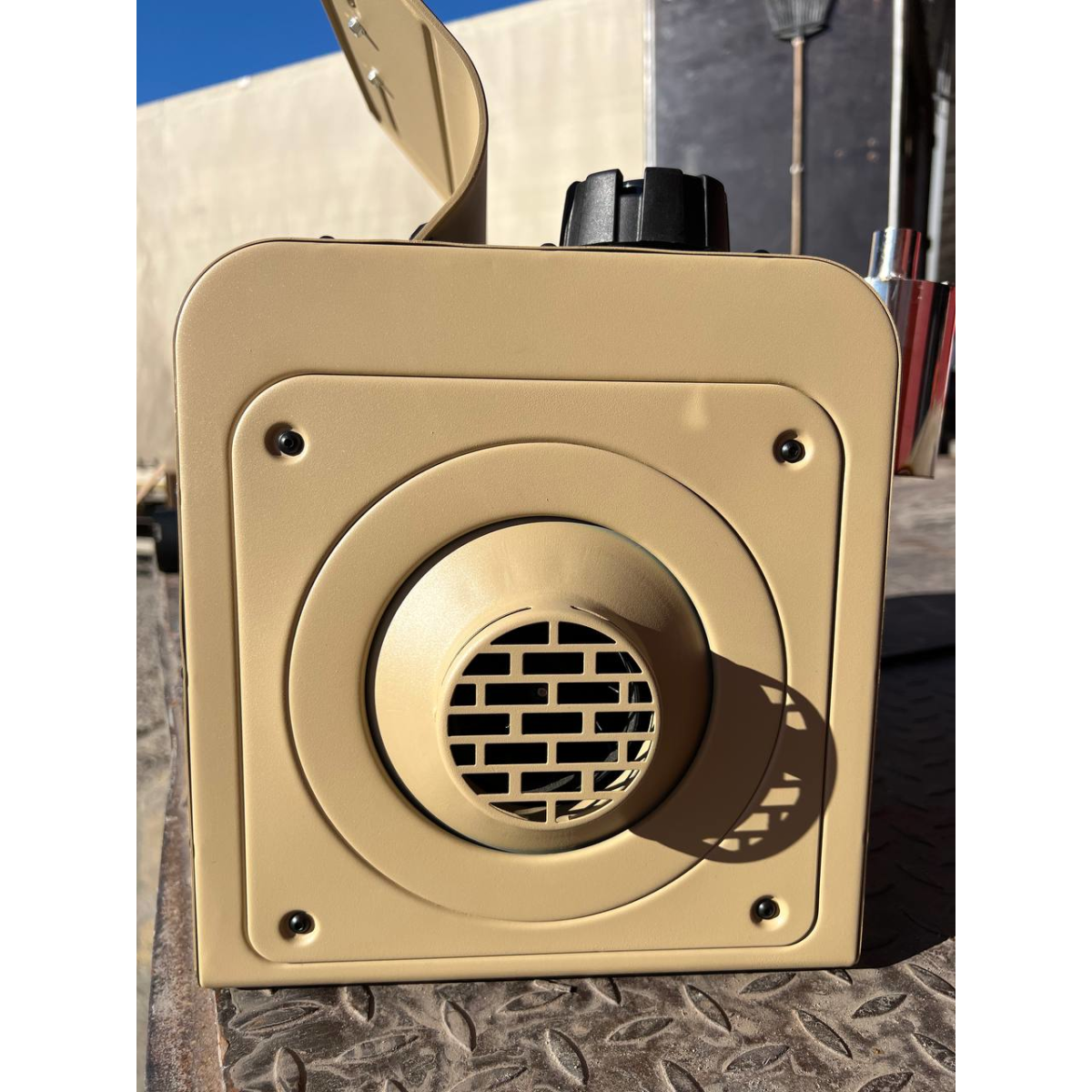

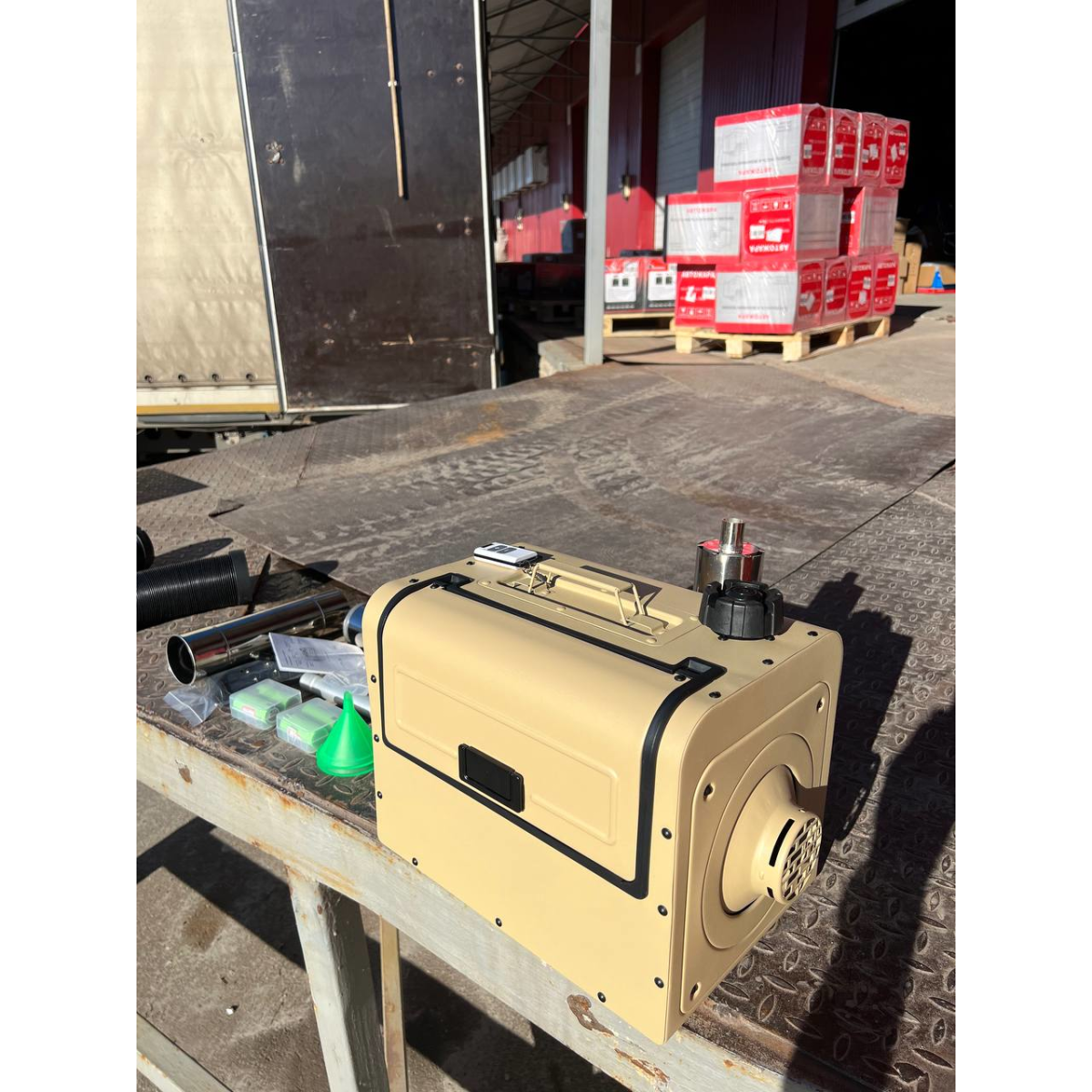

Photogallery

Watch videos about the heater.

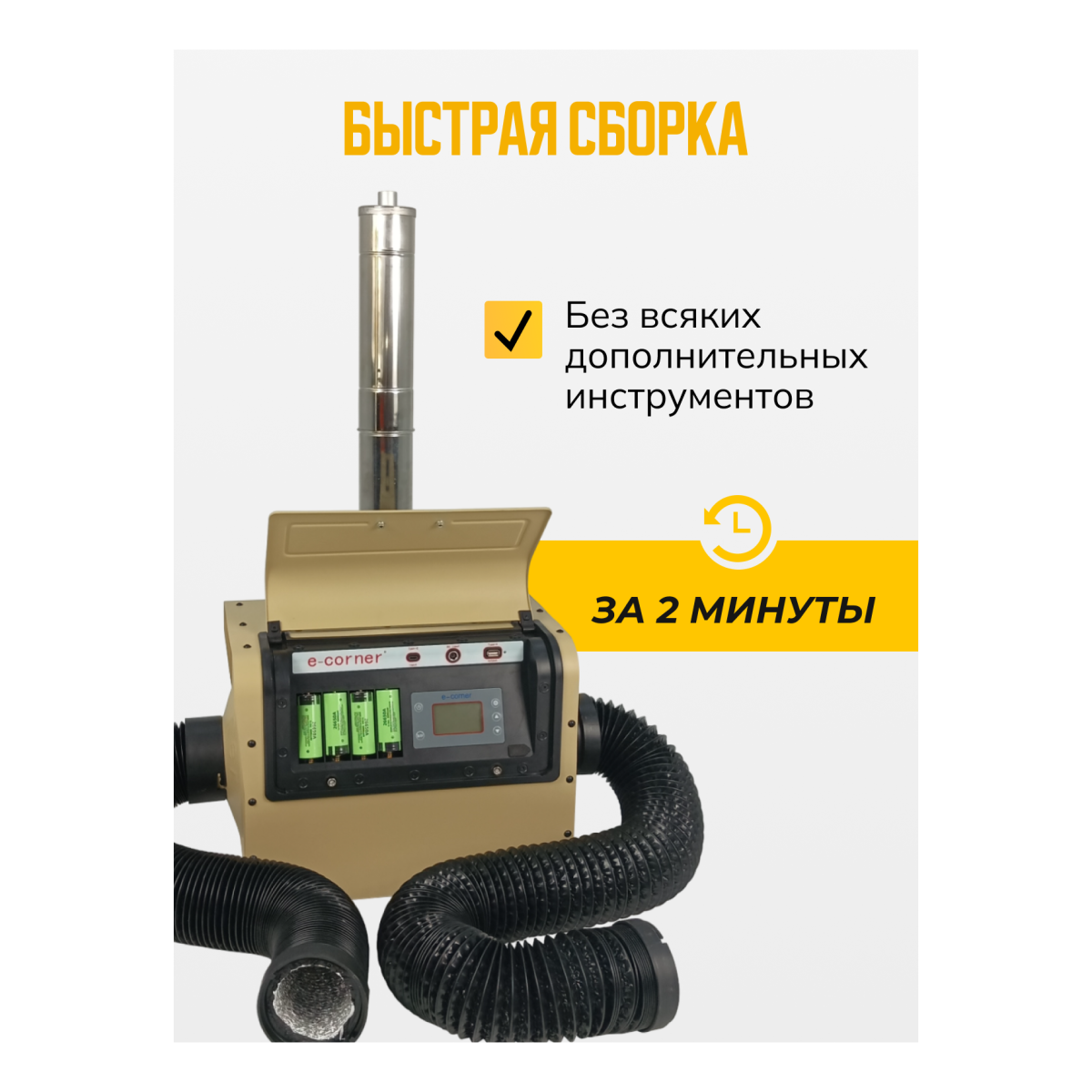

Easy to assemble, reliable to use.

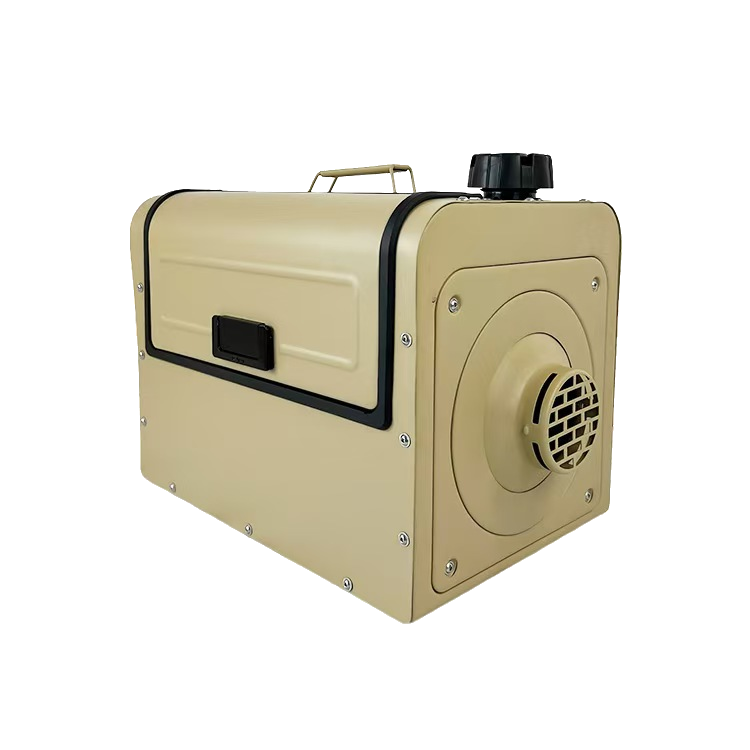

Two colors to choose from

You can choose the desired color upon ordering.

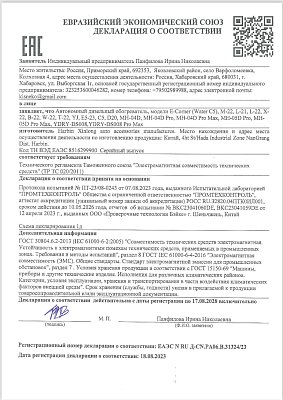

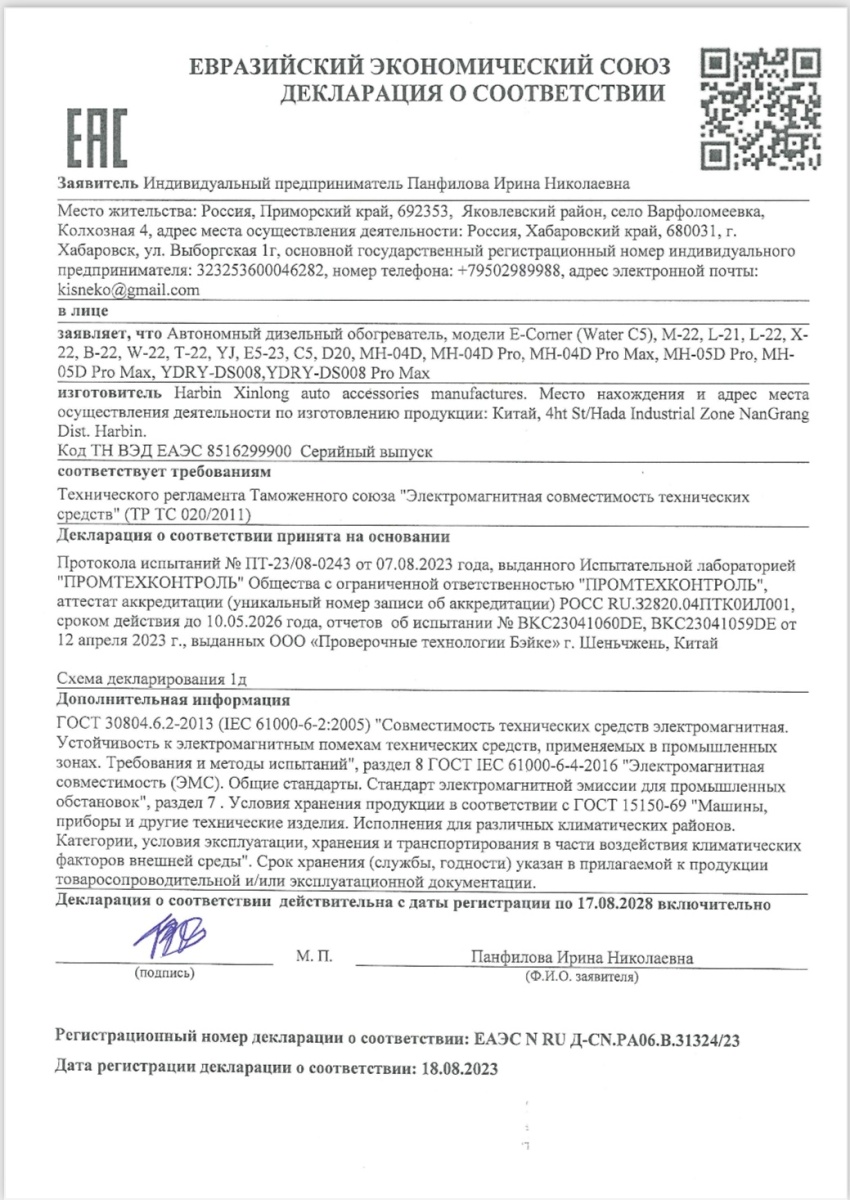

Certificates
